Laboratory CBR Testing for Pavement Design in Pickering

The glacial till that underlies much of Pickering presents a distinct challenge for pavement engineers: a matrix of silty clay with interspersed boulders, deposited during the last retreat of the Laurentide Ice Sheet. At our Durham Region laboratory, we run the soaked California Bearing Ratio test according to ASTM D1883 to quantify how this native material will behave under repeated traffic loads once saturated—a condition that is practically guaranteed given the high water table across the Duffins Creek watershed.
The lab CBR value is not just a number for a report cover; it feeds directly into the structural thickness design for flexible pavements in new subdivisions north of Highway 7 and for heavy-duty industrial yards near the Pickering Nuclear Generating Station. When a project requires a comprehensive geotechnical profile, the laboratory CBR test is often paired with a grain-size analysis to confirm fines content, and with Atterberg limits to assess the plasticity characteristics that govern long-term subgrade performance.

A soaked CBR of less than 3% on the silty clay till common in Pickering typically requires a granular sub-base thickness increase of 150 to 200 mm to protect the pavement structure.

Our service areas

Our approach and scope

Pickering’s development arc—from the post-war bungalows of Bay Ridges to the contemporary Seaton community master plan—has consistently demanded adaptable pavement solutions. The laboratory CBR test has evolved alongside these projects, moving from simple manual plunger systems to fully automated load frames that log data at 0.01-inch increments.

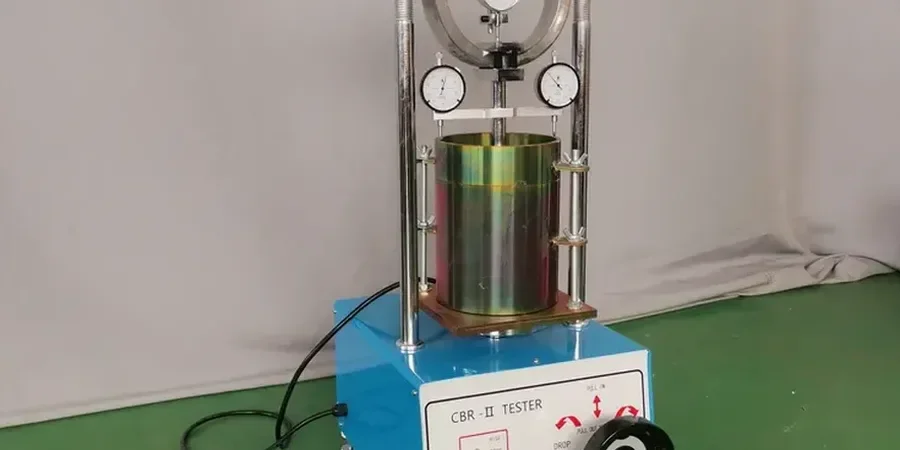

The procedure involves compacting a representative soil sample at optimum moisture content determined by a standard Proctor effort, then submerging it in water for 96 hours to simulate the worst-case saturation scenario typical of a spring thaw in the Rouge River valley. After soaking, a piston penetrates the specimen at 0.05 inches per minute while we record the load required to reach penetrations of 0.1 and 0.2 inches. The resulting CBR value, expressed as a percentage of a standard crushed stone reference, tells us whether the native subgrade can structurally support the pavement or if a granular sub-base layer needs to be thickened. For projects where the subgrade is too weak, we often recommend reviewing flexible pavement design alternatives or considering soil stabilization by grouting to improve the bearing capacity before the asphalt is placed.

Laboratory CBR Testing for Pavement Design in Pickering — Technical reference — Pickering

Local geotechnical context

One of the most common oversights we encounter in Pickering is the assumption that a single CBR value from a dry summer sample will be representative year-round. The lacustrine silts and clays found in the lower terraces south of the 401 can lose over 70% of their bearing capacity when the water table rises in late March, turning a seemingly adequate subgrade into a soft, pumping layer beneath the granular base.
Another risk surfaces when contractors import fill without requiring a laboratory CBR test on the borrow material. We have seen cases where a granular 'A' specification was met on paper, but the soaked CBR fell below 20%, well under the MTO minimum for a base course. This leads to premature rutting and alligator cracking within the first three freeze-thaw cycles. The laboratory CBR test, when run on both the native subgrade and the proposed import material, eliminates these diagnostic guesswork scenarios and provides the defensible data that municipal inspectors in Pickering increasingly demand before signing off on site plan approvals.

Need a geotechnical assessment?

Reply within 24h.

Email: info@geotechnicalengineering.co

Regulatory framework

ASTM D1883 - Standard Test Method for California Bearing Ratio (CBR) of Laboratory-Compacted Soils, ASTM D698 - Standard Test Methods for Laboratory Compaction Characteristics of Soil Using Standard Effort, MTO LS-702 - Method of Test for California Bearing Ratio of Soils (Ontario Provincial Standard)

Typical values

Parameter	Typical value
Specimen Compaction Method	Standard Proctor (ASTM D698) at optimum moisture content
Soaking Period	96 hours under water to simulate saturated subgrade conditions
Penetration Rate	0.05 in/min (1.27 mm/min) as per ASTM D1883
Surcharge Weight	At least 10 lb annular weights to simulate pavement overburden
Key Penetration Readings	Load at 0.1 in and 0.2 in penetration, compared to standard crushed stone reference
Specimen Preparation	Material passing the 3/4 in sieve, compacted in a 6 in diameter mold
Typical Test Duration	5 to 7 days including compaction, soaking, and penetration phases

Quick answers

How much does a laboratory CBR test cost for a project in Pickering?

The cost for a single-point laboratory CBR test typically ranges from CA$170 to CA$260, depending on whether it is a remolded sample or an undisturbed specimen, and whether a companion Proctor compaction curve is required. A full subgrade characterization package that bundles CBR with grain-size analysis and Atterberg limits is priced proportionally higher but provides a more complete dataset for the pavement design engineer.

How long does the laboratory CBR test take from sample submission to report?

A laboratory CBR test requires a minimum of five business days. The timeline includes compaction and moisture conditioning of the specimen, a 96-hour soaking phase to simulate saturated subgrade conditions, and the penetration test itself. If the soil has high plasticity and requires a longer soaking period to reach equilibrium, the turnaround can extend to seven days.

What is the difference between a laboratory CBR and a field CBR test?

The laboratory CBR test compacts the soil at a controlled moisture and density according to ASTM D1883 and soaks it for 96 hours, giving a conservative value that represents the subgrade in its weakest saturated state. A field CBR test, performed with a portable device directly on the compacted subgrade, reflects the in-situ moisture condition at that moment. For pavement design in Pickering, the laboratory CBR is preferred because it removes seasonal variability and provides a repeatable baseline for structural calculations.
